Core Technology Features
Independently developed, fully domestic radar solutions
±0.1mm measurement accuracy for solids and liquids with advanced signal processing
Simultaneous tracking of up to 5 targets with low-speed motion measurement capabilities
Interference resistance and environmental adaptability for extreme conditions
Operating range from -30°C to 100°C with high corrosion and salinity resistance
77-81 GHz frequency range with 3° emission angle for precise measurements
Tailored configurations and low power consumption for specific application requirements
Product Models
Comprehensive range of radar solutions for diverse applications
Bridge expansion joints, silo levels, sedimentation tanks, cement/coal ash storage
Bridge deformation, vibration/inclination monitoring
Sewage pools, flammable liquids/solids, flour silos
High temperature, corrosion, high pressure environments
High temperature, highly corrosive liquids, agitation, steam
Applications
Real-world solutions across multiple industries

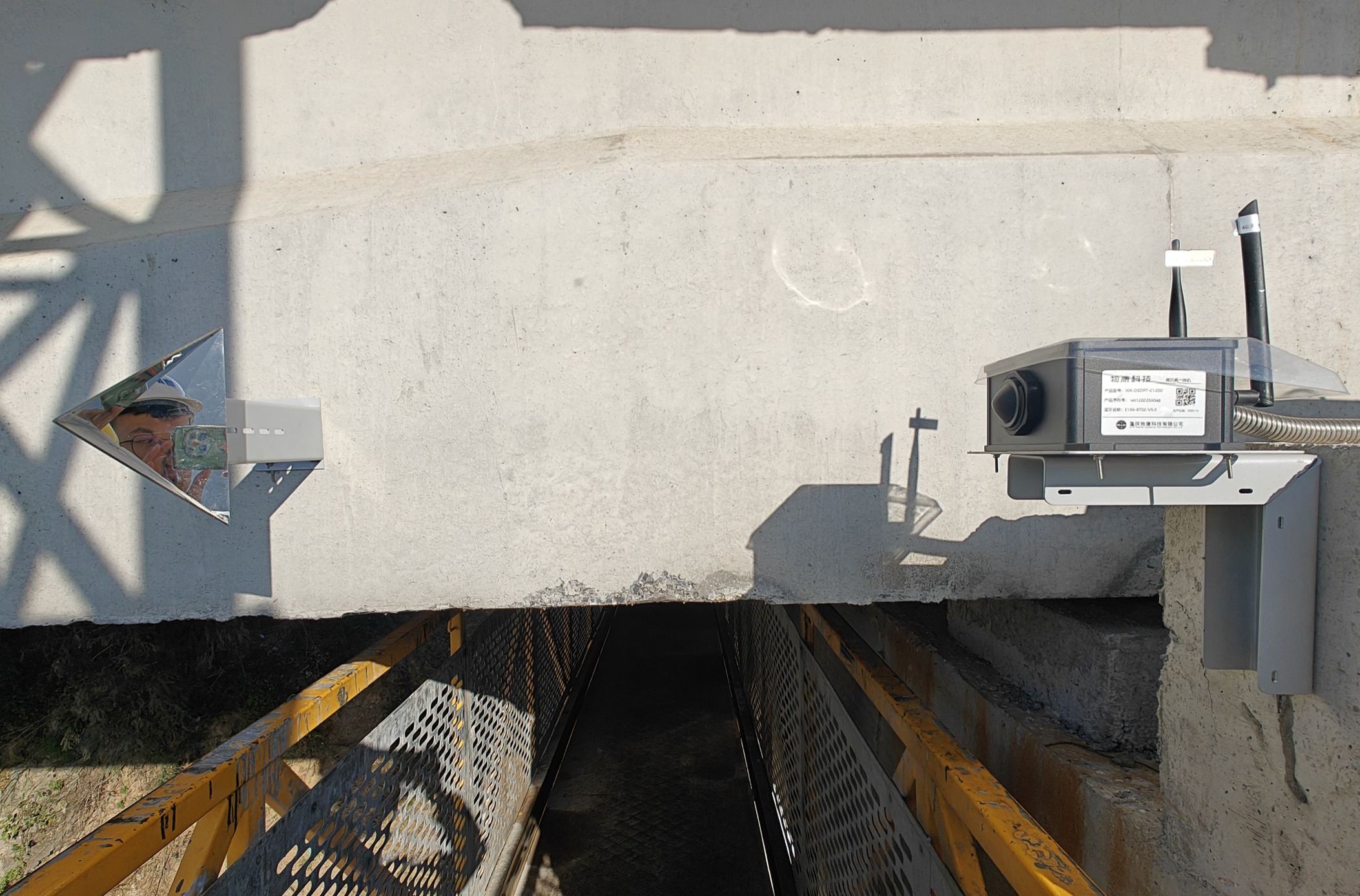

- Bridge safety monitoring
- Building structural analysis
- Infrastructure health
- River and lake levels
- Urban drainage systems
- Flood prevention
- Chemical storage tanks
- Cargo stack monitoring
- Volume estimation
Technical Specifications
Detailed specifications across all product models
Measurement
Range: 0-10m
Accuracy: ±0.1mm
Emission Angle: 3°
Environmental
Temperature: -30°C to 100°C
Protection: IP67
Communication
Output: RS485 (Modbus) / TTL
Frequency: 77-81 GHz
Installation
Threaded (default), Bracket, Flange
